Which Wireline Tools Do You Know That Can Measure Porosity?

August 17, 2017 © Copyright Glomacs

If you believe that for most of you this will be a very easy question to answer, think it twice, most people will answer something like this:

That is easy!!! Density, neutron & sonic, some others that are a little more technical will include Nuclear Magnetic Resonance as well.

Let me inform you that they have it all wrong and I will explain the reasons right now.

Density Tool Basics

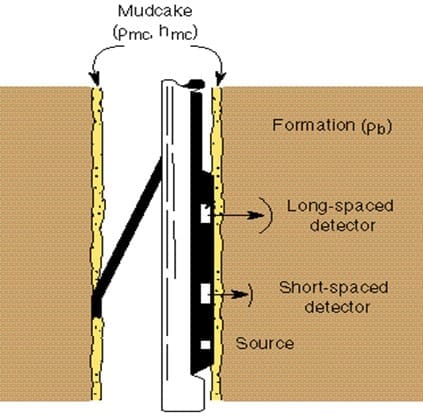

Density tools uses a chemical gamma ray source and two or three gamma ray detectors. The source emits gamma ray which interact with the formation atoms through several nuclear physics mechanisms being the main ones Compton scattering and photoelectric absorption.

Measure Porosity 1

Gamma rays will lose energy during these interactions and the number of gamma rays returning to the detector will depend on the number of electrons present, the electron density, Ρe.

The electron density can be related to the bulk density of the minerals by a simple equation:

Ρe = Ρ( 2 Z/A )

Where Z is the atomic number (number of electrons per atom) and A is the atomic weight.

The assumption made in the interpretation is that:

Z/A = 0.5

This is very close for most elements commonly encountered, except hydrogen which has little effect on the measurement (as it only has 1 electron). Therefore we can assume that Ρe ≅ Ρ.

This is not 100% correct, equations have been developed that relates electron density to formation density and those are the ones applied on the different density tools in the market. Therefore, density tool as it names indicates measures density, in order to calculate porosity, you need to know the fluid content and the lithology and then you can calculate it using the formula:Measure Porosity 2Where Ρma is the equivalent matrix density, Ρf is the fluid density and Ρb is formation density determined by the tool readings.

130 + intensive & captivating trainings on Oil & Gas Industry Disciplines

Neutron Tool Basics

To talk about the mechanism used by neutron tools to determine porosity, we need to define a parameter know as Hydrogen Index.

Hydrogen Index is the quantity of hydrogen per unit volume, fresh water is defined as having a Hydrogen Index of 1, oil has a Hydrogen Index which is slightly less than that of water, the Hydrogen Index of gas is a much smaller than that of water, this is what causes the very well-known density-neutron crossover.

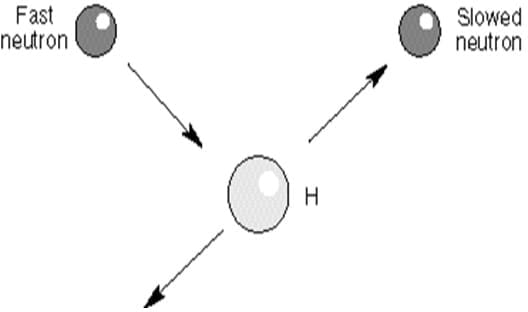

Neutron tools use a chemical or electrical neutron source and 2 to 3 detectors, the neutrons emitted by the source will interact with formation atoms, they will be slowed down from their initial “fast” state by collisions with the formation nuclei. At each collision there is some energy lost by the neutron.

Measure Porosity 3

The principal element involved in the slowing down is Hydrogen, because it is close in size to the neutron, this is why the tool measures the Hydrogen Index.

Neutron detector counts are then converted to porosity using a transform which is a mixture of theoretical and experimental work, these transform will give different porosity values according to the lithology.

Therefore, neutron tools measure Hydrogen Index and convert its measured counts to porosity depending on the formation matrix, so they do NOT measure porosity.

Complete suite of Training & Competency Development

Sonic Tools Basics

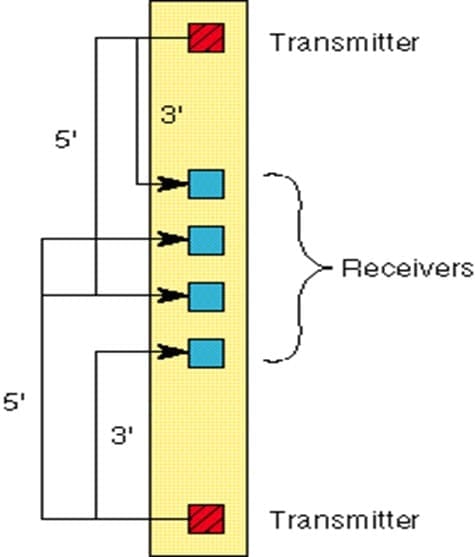

Sonic tools use a minimum of two acoustic transmitters and four receivers. The tools create an acoustic signal and measure how long it takes to pass through a rock. By simply measuring this time we get an indication of the formation properties.

Measure Porosity 4

The main property measured by the tool is the slowness, that is defined as the time needed for the acoustic signal to travel 1 foot in the formation.

Formation porosity can be determined with sonic tools using the following formula:

Measure Porosity 5Where Δma is the equivalent matrix slowness, Δf is the fluid slowness and ΔT is slowness determined by the tool readings.

Therefore, sonic tools do not measure porosity, they do measure slowness and we calculate porosity using equations, furthermore sonic tools do not “see” secondary porosity, on the contrary density and neutron allow to calculate total porosity.

150+ NEW industry relevant trainings

Nuclear Magnetic Resonance Basics

Nuclear Magnetic Resonance tools use the same principles of medical MRI in a different way, instead of having the subject of investigation (a human) in the middle of the instrument, in this case the instrument is inside the borehole so the subject of investigation (formation) is all around the tool.

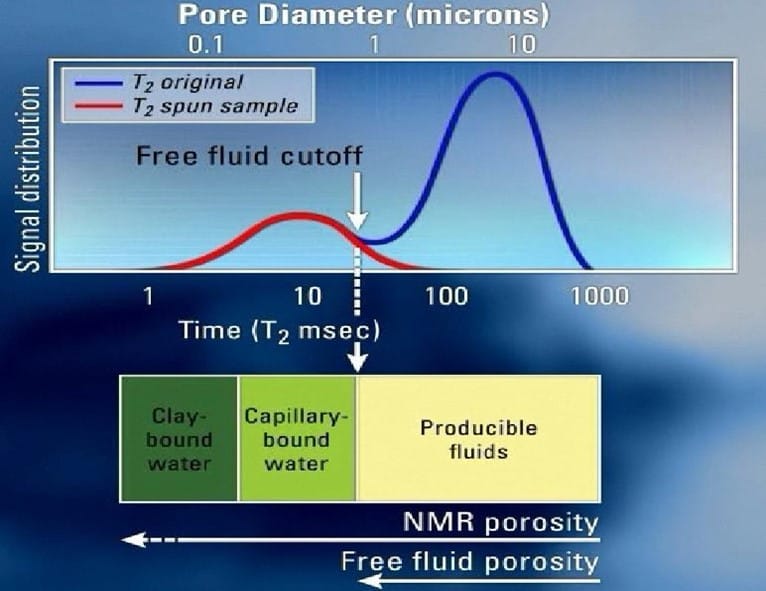

An NMR tool can directly measure the density of hydrogen nuclei in reservoir fluids. Because the density of hydrogen nuclei present in water is known, data from an NMR tool can be directly converted to an apparent water-filled porosity. This conversion can be done without knowledge of the matrix, so it provides a lithology independent total porosity.

Measure Porosity 6

Tool physics is pretty complicated and outside the reach of this article, you can learn more about NMR on any of my courses.

What is really important to know here is that NMR measurement depends on Hydrogen Nuclei, so it is somehow dependent of the Hydrogen Index, thus we can say that it does not measures porosity but it allows to calculate it as with the other 3 types of tools we talked about before.

So as you should be able to realize now, there is not a single wireline tool that can “measure” porosity although there are several tools that allow us to determine it.

10,000 People Trained a Year, with 98% Satisfaction Rating

If you want to learn more about petrophysics and the fascinating relationships between formation lithologies and their fluid contents in the reservoir, take a look at some of the courses offered by GLOMACS:
